The opening and closing part of the cast steel globe valve is a cylindrical valve disc, the sealing surface is flat or conical, and the valve disc moves linearly along the middle line of the fluid

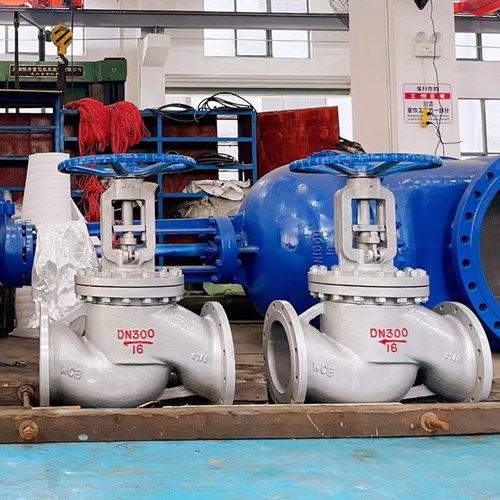

Name | cast steel globe valves |
Type | straight type, bolted bonnet |
Nominal Size | 12'', DN300 |
Nominal Rating | PN16 |
Media | steam |
Temp. | 228 Deg C |
Body | ASTM A216 WCB |
Disc | ASTM A105 |
Seat | integral 13Cr |
Stem | ASTM A182 F6a |
Bolts/nuts | B7/2H |
Operation | Handwheel operation |
Design | EN 13709 |
End to End | EN 558-1 |
End | EN 1092-1 |
Guarantee | 12 months after shipments and 6 months after installed |
Delivery | 15 days |
Painting | Expoxy |
Packing | Plywood Case |
MOQ | 1 Set |
Certificate | ISO9001, ISO14001,ISO45001, SIL, API 6D,CE |
Origin | Wenzhou, China (Mainland) |
Project | Chile |
